Bigstreen Vacuum Suction Cup with LCD Display
BIGSTREN 200KG ELECTRIC VACUUM SUCTION CUP FOR LCD TILES 200MM

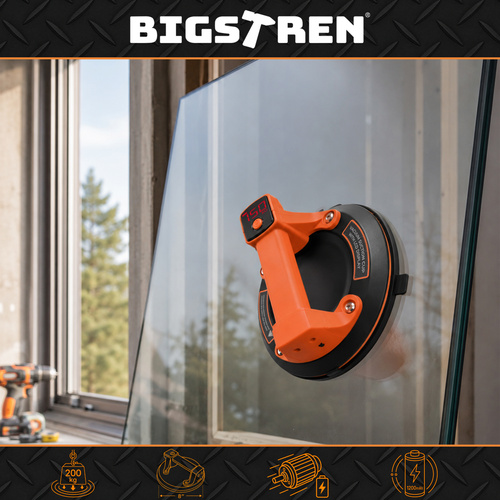

Bigstreen electric vacuum suction cup It facilitates the safe handling of heavy tiles, stoneware, glass, and rigid slabs. It automatically generates and replenishes vacuum pressure, eliminating the need to manually pump the device and allowing you to focus on precise material positioning. This practical vacuum holder is ideal for tilers, glass installers, renovation crews, and anyone working with large, bulky items.
The most important advantages of the Bigstreen vacuum suction cup? Maximum tensile force 200 kg - large margin when working with heavy and bulky elements.
? Recommended working load up to 180 kg - a clearly defined limit makes it easier to safely select the device for the material being transported.
? Automatic vacuum generation - no tiring and time-consuming manual pumping.
? Automatic vacuum refill - the pump responds to a slight decrease in holding force during operation.
? Large suction cup 200 mm - wide contact surface helps to firmly grip the tile, glass or plate.

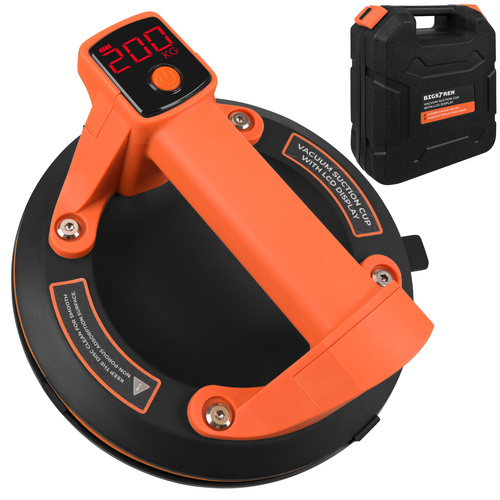

? LCD display and battery indicator - easier control of the device's condition before starting work.
1200 mAh battery and up to 8 hours of intermittent use - freedom of operation without a power cord.
Technical specifications of the vacuum suction cup- Brand: Bigstreen
- Catalog number: 00027716
- Type: Electric Vacuum Suction Cup

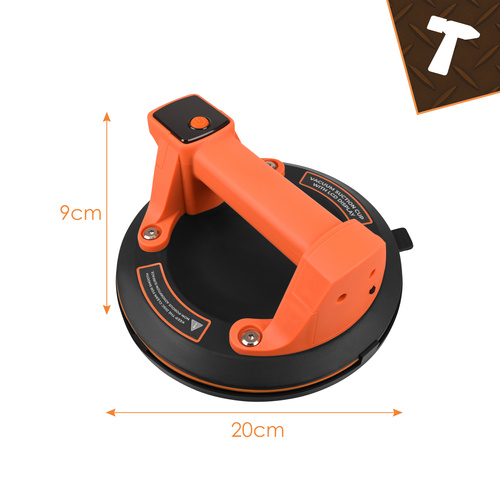

- Rubber suction cup diameter: 200 mm
- Maximum vertical tensile force: 200 kg
- Recommended Safe Working Load: Up to 180 kg
- Recommended component weight range: 1.5-180 kg
- Motor voltage: 3.7V DC
- Battery capacity: 1200 mAh
- Input voltage : 5V/1A
- Charging time: approx. 1.5-3 hours
- Working time: up to 8 hours in intermittent mode
- Filter: cotton,
- Product weight: 1.606 kg
- Weight with packaging: 1.792 kg
- BIGSTREN 200 mm vacuum suction cup

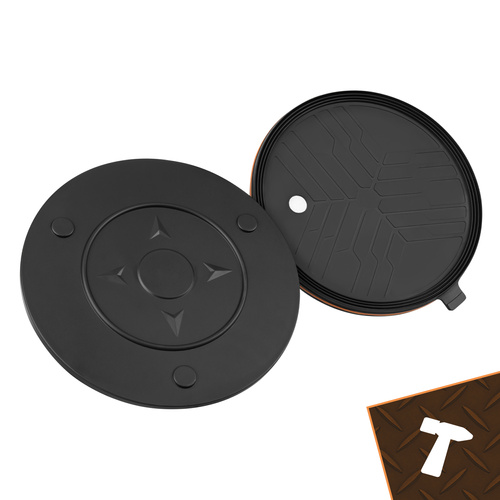

- Polyethylene transport case
- Cotton filter installed in the device

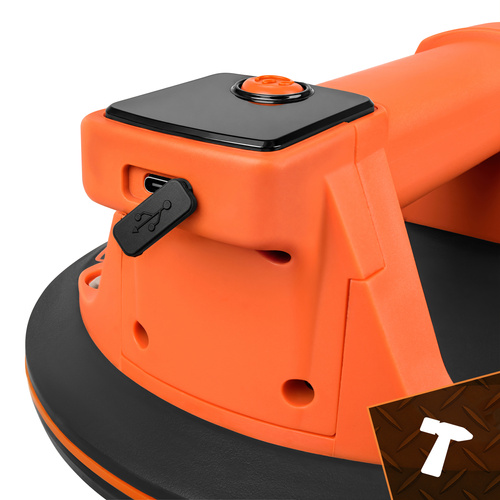

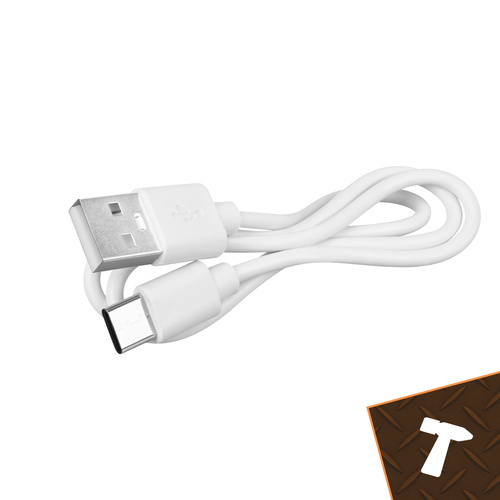

- USB-C cable
- User manual
- Original manufacturer's packaging
PRODUCER:
RESPONSIBLE PERSON IN THE EU:
WARNING CONTENT:
6.1. Precautions: - The device should only be used by adults who are familiar with the instructions. - Always check the condition of the suction cup, handle and body before use - do not use the device if there is visible damage. - Before lifting a load, make sure that: a) the surface is smooth, clean, dry and non-porous, b) the weight of the load does not exceed the safe working load, c) the suction cup is firmly seated in the center of the surface. - During operation: a) keep the load as close to your body as possible, b) do not make sudden movements or turns, c) avoid hitting the load against obstacles. - Do not work near open flames, high temperatures or in potentially explosive environments. - Do not use the device in rain or in very humid environments. - Keep the charging port and electrical components dry at all times. - When charging, place the device on a stable, dry surface, away from flammable materials. - Do not leave the device switched on unattended. 6.2. Warnings: - WARNING: Do not exceed the safe working load of 180 kg and do not use the device for work on which the safety of human life depends (belaying, lifting people, belaying equipment, etc.). - WARNING: Do not carry loads over the heads of third parties or in places where a falling load could cause injury or damage. - WARNING: Do not use the device on surfaces: a) porous or soft, b) very uneven, with defects, scratches or holes, c) covered with loose paint, plaster, rust, oil, grease or other slippery substances. - WARNING: Do not modify the device, do not disassemble the pump or battery. Any repairs should only be performed by an authorized service center. - WARNING: This product contains a built-in battery. Do not dispose of the device in fire, puncture it, heat it above the recommended temperature, or short-circuit the terminals.
