Rear rear parking sensors set 4x sensor lcd display

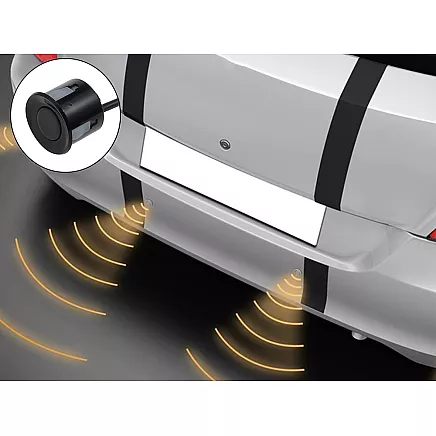

Theinnovative parking assist system is based on advanced ultrasonic technology, designed specifically for cars. Its main function is to monitor the space at the rear of the vehicle during the reversing manoeuvre and to give audible warnings if an obstacle is detected.

Although the system is effective in assisting the driver when reversing, it does not relieve the driver of the need to exercise extreme caution and full attention.

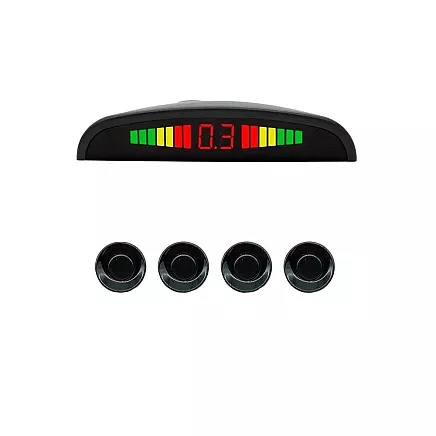

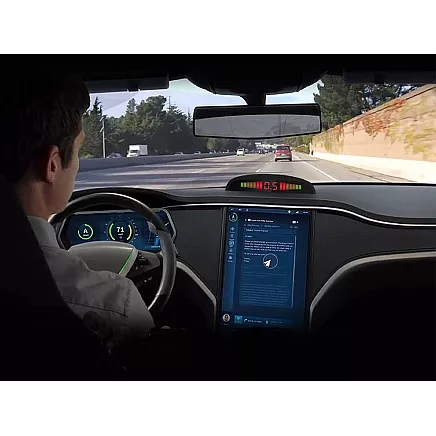

TheLED panel presents the driver with obstacle data, including both distance and specific position. The distance information is presented numerically on the display, which covers a range from 0.0 metres to 2.5 metres.

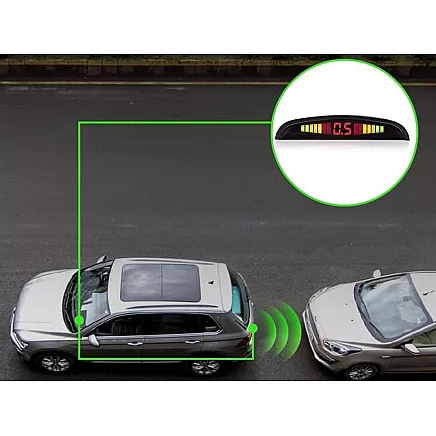

The system automatically activates when reverse gear is engaged at the same time as the reversing lights come on. As the vehicle approaches an obstacle, the driver is immediately informed of its location (whether it is on the right or left side of the vehicle) by means of the colour indicators on the panel. In addition, an audible signal is activated, which is emitted from a piezo transducer, offering four different frequencies depending on the distance.

A special drill is included, which allows perfect holes to be made in the car without fear of damaging the car.

The sensors are configured to accurately detect even small obstacles such as parking posts, city barriers or high kerbs.

1 zone: >250cm

2 zone: 160-250cm

3 zone: 100-150cm

4 zone: 70-90cm

5 zone: 40-60cm

6 zone: 0.3-0.0m

Product code: 10090

High-quality design

Audible indication of obstacles

Simple assembly

Rated voltage: DC 12 V

Operating voltage: DC 10.5 - 16 V

Supply current: 40-300mA

Obstacle detection distance: 0.3 - 2.5 m

Ultrasound frequency: 40 Khz

Device operating temperature: -40°C~+80°C

Operating temperature of display: 0°C to +60°C

Number of sensors: 4pcs

Drill with hole punch for hole drilling

Colour: black

Product is CE certified

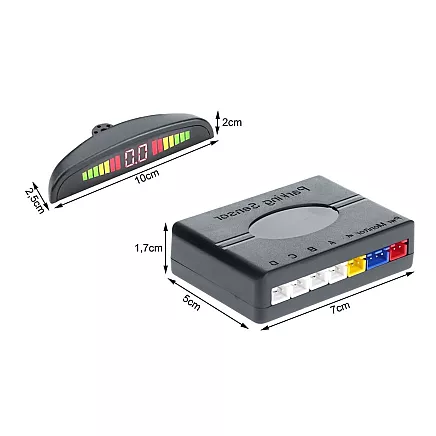

Display dimensions: 10cm x 2.5cm x 2cm

Dimensions of power supply: 7cm x 5cm x 1.7cm

Sensor cable length: approx. 2.3 m

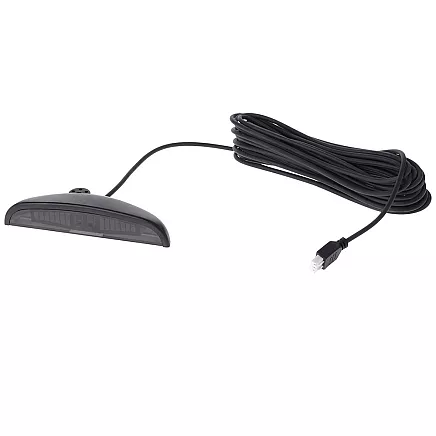

Length of LED display cable: approx. 4.9cm

Length of power supply cable: approx. 75 cm

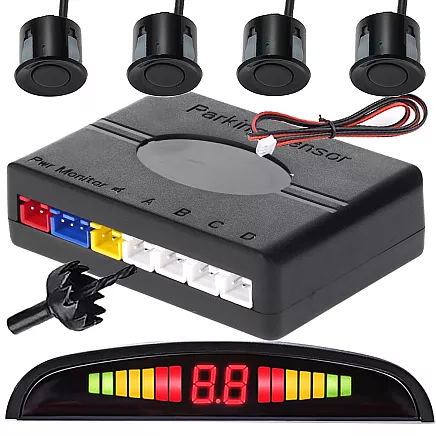

Factory new parking sensor set

Sensors 4 pcs

LED display

Control unit

Drill with hole saw

Power cable

Self-adhesive elements 2pcs

Original packaging
