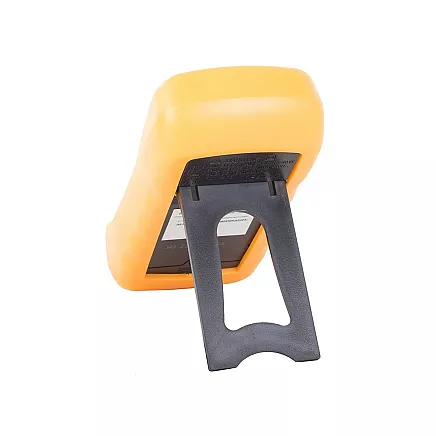

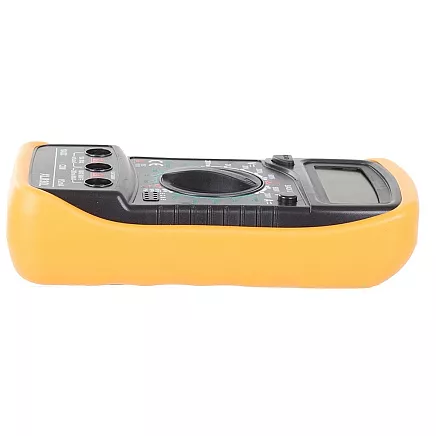

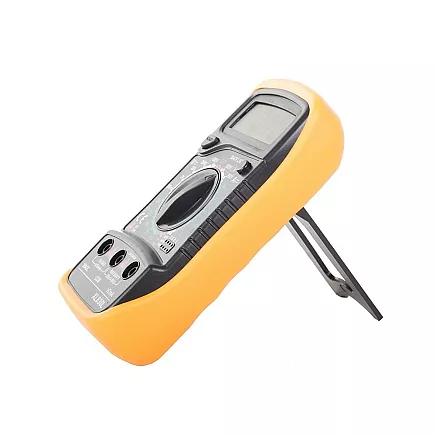

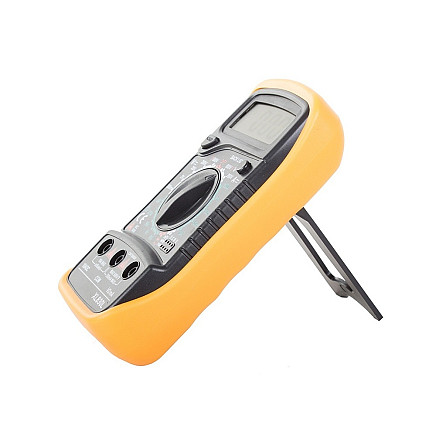

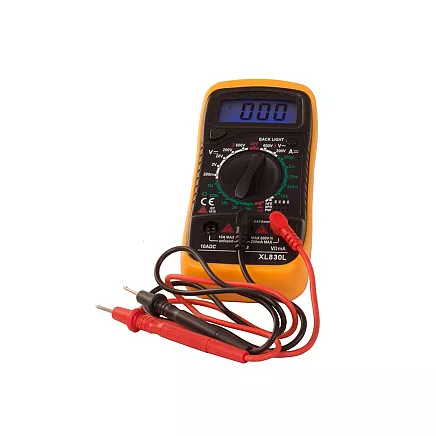

Digital current meter multimeter voltage tester

Brief Attributes

Product Code: 138235

Item Condition: Brand New

9.60€ Ex Tax: 7.93€

Delivery from supplier warehouses. We do everything possible to ensure that the goods reach you on time.

Product available from wholesaler

Approximate Delivery Date: 5-10 darba dienas

Quantity: 10+ pcs.

This product was translated automatically

DIGITAL CURRENT METER MULTIMETER VOLTAGE TESTER + 9V BATTERY

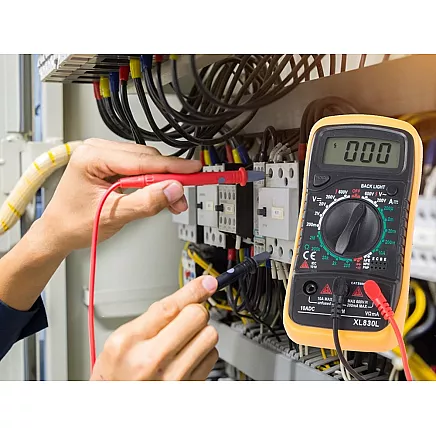

The digital meter is an indispensable tool for every electrician, mechanic and electronics service technician.

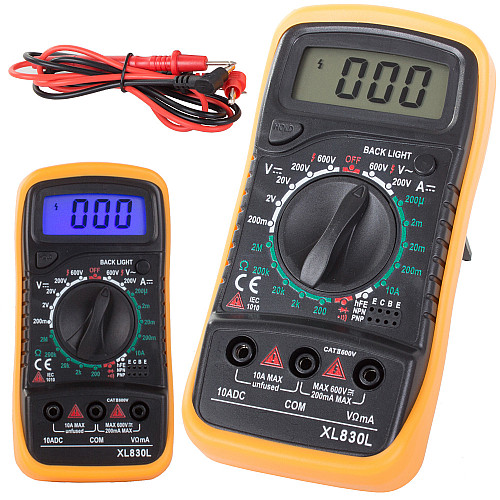

The voltage meter is equipped with a blue backlighting function so that the screen is always easy to read. The multimeter also has a hold function with which you can remember the last measurement

TECHNICAL SPECIFICATIONS:

Product code: 11328

High maximum current and DC voltage measurement ranges

High maximum measuring ranges for AC voltage

Useful measuring ranges for small DC currents

Has a casing that protects against electric shock

THE METER ALLOWS THE FOLLOWING TYPES OF MEASUREMENTS:

Circuit continuity check

Measurement of resistance

Measurement of diodes

Measurement of DC current

Measurement of DC and AC voltage

Transistor measurement

LCD backlighting

HOLD

Dimensions: 7cm x 14cm x 3.5cm

TECHNICAL DATA:

- DCV

200m/2/20/200[V] +/-(0.5%+/- 2)

1000V +/-(0,8%+/- 2)

0.2 mV-1000V

- ACV

200V +/-(1,2%+3)

750V +/-(1,2%+3)

0.2mV-750V

- DCA

200uA/2000uA/20mA +/-(1% +/-2)

200mA +/-(2% +/-2)

10A +/- (3% +/-2)

10uA-10A

- OHM

200ohm +/-(0.8%+/-2)

2k/20k/200k/2M[ohms] +/-(0.8%+/-2)

200Mohm +/-(1% +/- 2)

0.2ohm-200Mohm

Transistor test: yes

Automatic switch-off: yes

Diode test: yes

Circuit continuity indication: yes

LCD display: yes

Battery: 9V 6F22 (supplied)

Display size: 15x46mm

Dimensions: 67x124x22mm

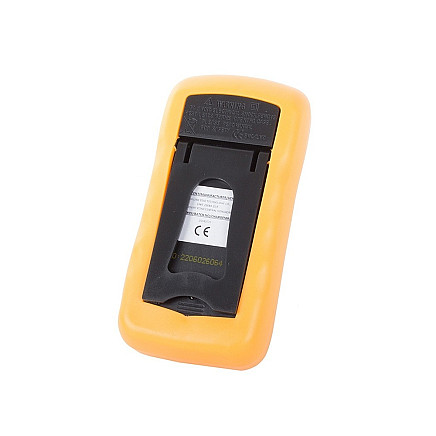

Meter is CE certified

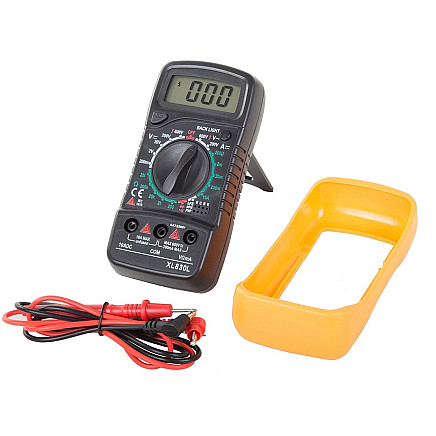

KIT INCLUDES:

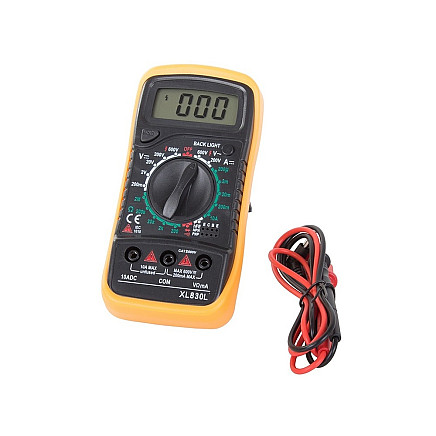

Factory new XL830L digital meter

A set of test leads

9V battery

Rubber case

Original packaging
