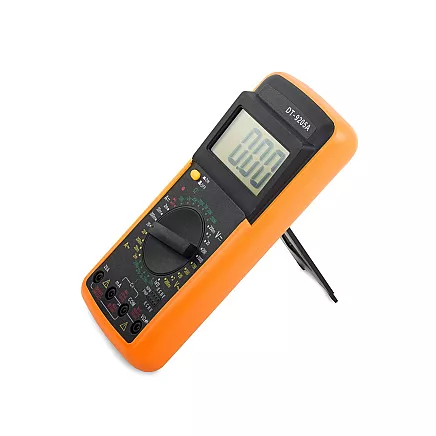

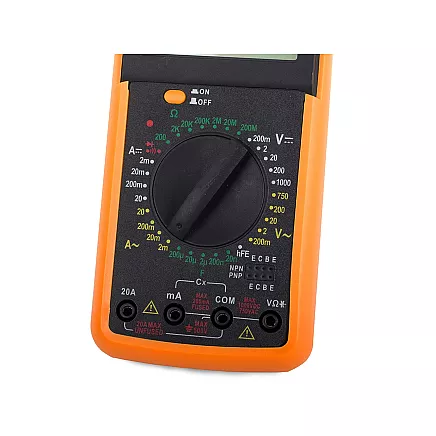

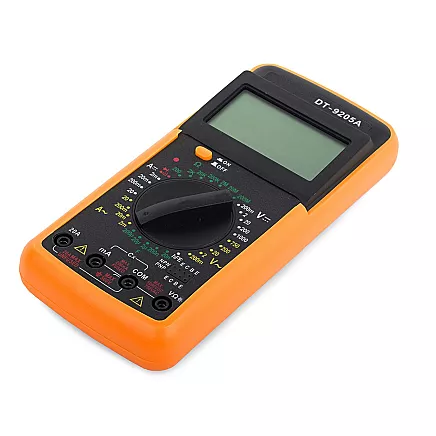

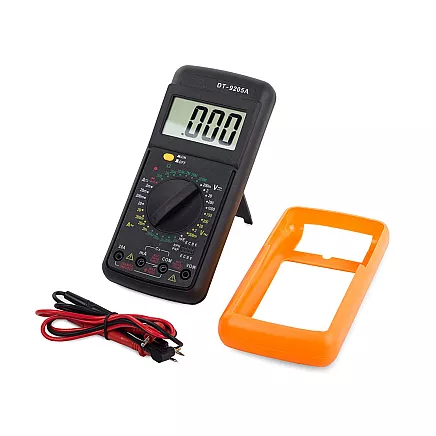

Digital multimeter current meter dt9205a lcd cyfra

Capacitance measurement, high current/voltage ranges. The meter has a large and easy to read display, very good precision of measurements. The product we offer is an indispensable tool for every service technician.

Sound signalling (buzzer 0.5s);

Numerical signalling;

LED indication (red LED)

Measurements of direct (DC) and alternating (AC) voltage

Measurement of direct (DC) and alternating current (AC) intensity

Resistance measurements

Capacitance measurements

Measurements of hFE of transistors

Conduction voltage measurements of diodes

Circuit continuity check

Product code: 11028

High maximum ranges for DC current and voltage measurement (20A/1000V);

Automatic power off (auto power off), effectively prevents battery discharge;

Useful ranges for measuring small DC currents (2mA/20mA - smallest indication is 0.001mA!);

Capacitor capacitance measurement (up to 6 ranges, up to 200uF!);

Rubber cover, holster, for protection against mechanical damage and shock.

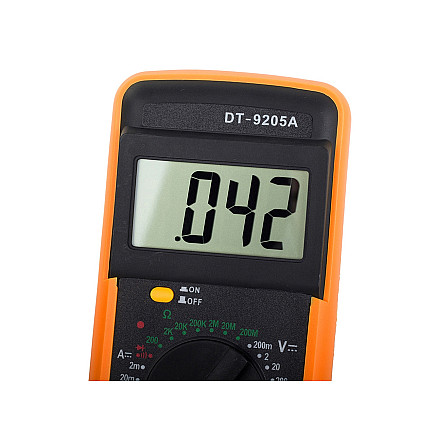

Large, easy-to-read LCD display

Increased display size.

Very good measurement precision.

DCV:

• 200m/2/20/200[V] +/-(0.5%+1)
• 1000V +/-(0,8%+2)
• 0.1mV-1000V

ACV:

• 200mV +/-(1.2%+5)
• 2/20/200[V] +/-(1%+5)
• 750V +/-(1,2%+5)
• 0.1mV-750V

DCA:

• 2m/20m[A] +/-(1%+3)
• 200mA +/-(1,5%+3)
• 20A +/-(2%+10)
• 1uA-20A

ACA:

• 2mA +/-(1.2%+5)
• 20mA +/-(1,2%+5)
• 200mA +/-(1%+5)
• 20A +/-(2%+10)
• 10uA-20A

OHM:

• 200OHM +/-(1%+10)
• 2k/20k/200k/2M[OHM] +/-(1%+3)
• 20MOHM +/-(1%+5)
• 200MOHM +/-(5%+20)
• 0.1OHM-200MOHM

CAP:

• 2n/20n/200n/2u/200u[F] +/-(4%+3)
• 1pF-200uF

Transistor test: yes

Automatic circuit breaker: yes

Diode test: yes

Circuit continuity indication: yes

LCD display: yes

Power supply: 2 x AAA batteries (included)

Display range: 1-999

Display size: 3.3cm x6.3cm

Size: 19cm x 9cm x 3.5

Factory new digital meter

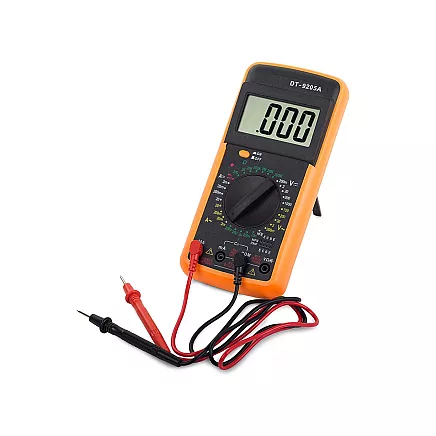

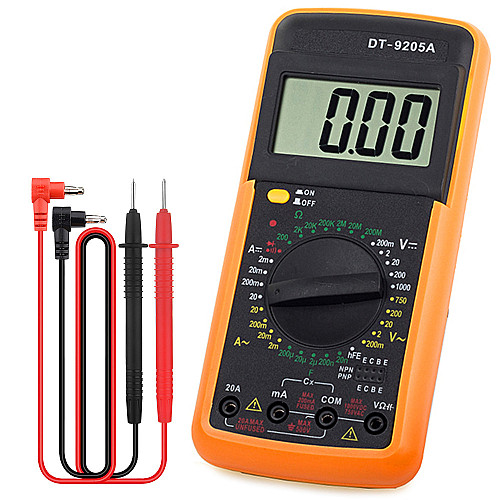

A set of test leads

2 x AAA batteries

Original packaging
